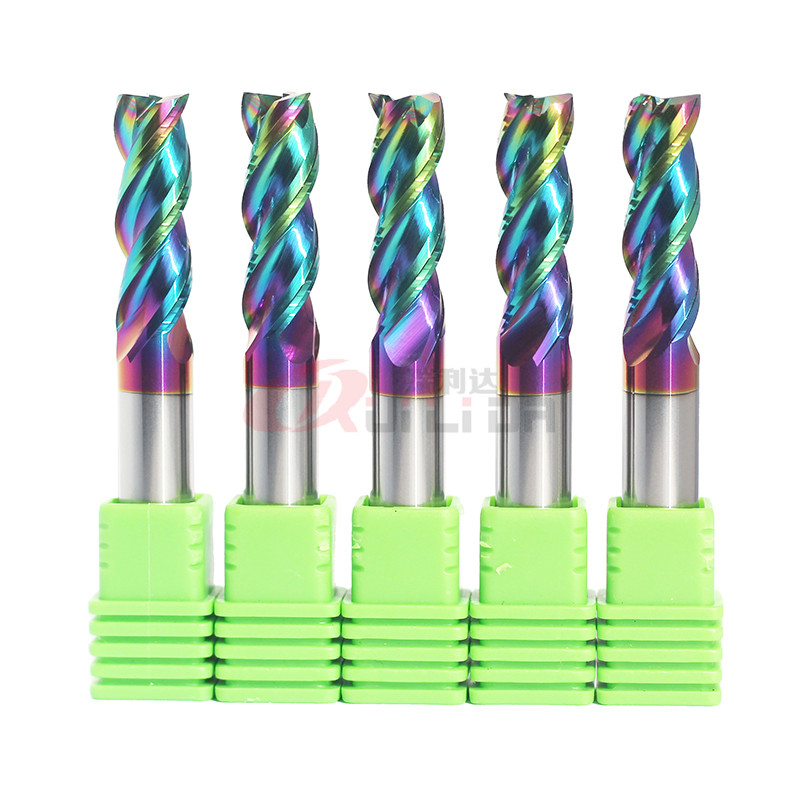

High-Efficiency U Shape 3 Flutes Aluminium End Mill DLC Coating Big Capacity
RLD End Mill Catalog in English.pdf
DLC Diamond-like Carbon Coating can provide up to 100% increase in tool life, the polished surface
of the flutes decrease cutting forces, and are excellent in finishing operations. Can be used for dry cutting.
1. Special Cutting Edge: Special cutting edge can increase the cutting ability.
The lifetime of tools and machines will be longer than the uncoated aluminum end mill.
2. U shape design: It is suitable for high feed rate slot milling
3. Smooth And Wide Flute: Smooth and wide flute will remove the cuttings more easily
4. DLC Coating: can increase lifetime 2-3 times longer
5. High-quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten
6. Advanced grinding machine: It is processed by German imported machines.
It can effectively suppress chatter during processing, which is the basis of excellent quality.
Instructions
Milling cutter and operating instructions that buyers need to know
1. Before using the tool, please measure the tool runout. When the tool runout accuracy exceeds 0.01mm,
please correct it before cutting.
2. The shorter the tool extends out of the collet, the better. If the tool extends longer, reduce the speed,
feed rate, or cutting amount.
3. In case of abnormal vibration or sound during cutting, please reduce the speed and cutting amount
until the situation is improved.
| Product name | High Efficiency U Shape 3 Flutes Aluminium End Mill DLC Coating Big Capacity |
| Size | Customized |
| Suitable for | Aluminum, Copper, brass, etc |
| Feature | Can be used for roughing and finishing |
| Flute Number | 3 |
| Coating | DLC |
| Helix angle | 40° |
| Co | 12% |
| HRA | 92.8 |
| TRS Min(N/mm²) | 4000 |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
| DLC Coating UShape High-efficiency 3 flutes Square Aluminum End Mill |
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 4 | 50 | 12 | 4 | 3 |
| 6 | 50 | 18 | 6 | 3 |
| 8 | 60 | 24 | 8 | 3 |
| 10 | 75 | 30 | 10 | 3 |
| 12 | 75 | 36 | 12 | 3 |

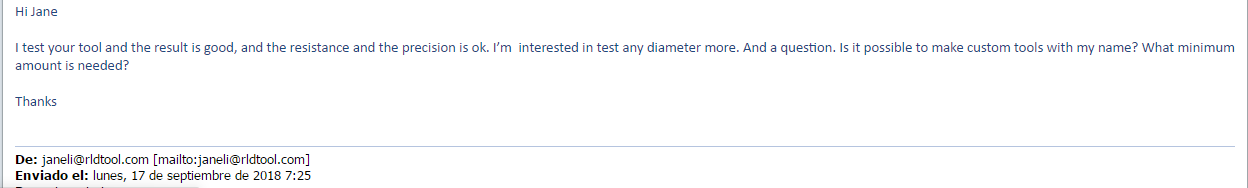

Customers Feedback
Our package
Step1: The milling cutter has been finished producing and sent to the warehouse
Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band
Step3: Use the air bubble paper to encase the plastic pipe
Step4: Put the goods encased with air bubble paper in small packing cartons
Step5: Put another air bubble paper on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
Our company is especially pr
oducing carbide end mills, drill bits, and reamers.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
The precision can be assured.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
We also can accept CNY.
6. Can you produce special carbide tools?
Yes, we can produce special carbide tools according to your drawings or samples.
7. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.
8. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
